Open the door

Yaml paths:

/gameConfigs/TBS/Test/OpenTheDoor.yaml

Description

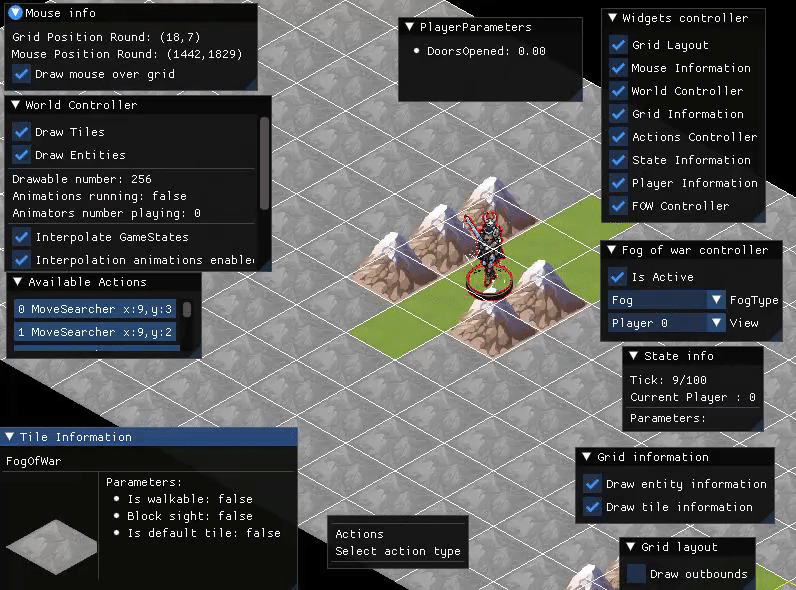

TBS game in which two players starts with a single searcher unit and a door. The goal of the game is to find a key in the labyrinth, pick it up, equip it and open the door.

YAML

GameConfig:
    Type: TBS
    RoundLimit: 100
    FogOfWar: true

Agents:
    - HumanAgent
    - OSLAAgent

Player:
    Parameters:
        DoorsOpened: [0,0,10]

GameRenderer:
    Resolution:
        Width: 800
        Height: 600
    Default Assets:
        FogOfWar: ../../../assets/Tiles/notVisible.png
    GridIsIsometric: true
    TileSpriteOrigin:
        Width: 128
        Height: 112
    EntitySpriteOrigin:
        Width: 256
        Height: 360
    TileSpriteSize:
        Width: 256
        Height: 144
    EntitySpriteSize:
        Width: 512
        Height: 512
    #Optional:
    #Font: ../../assets/arial.ttf
    #OutlineShader: ../../assets/OutLine.frag

Tiles:
    Plain:
        Sprite: ../../../assets/Tiles/plain.png
        Symbol: .
        IsWalkable: true
        DefaultTile: true
    Mountain:
        Sprite: ../../../assets/Tiles/rock.png
        Symbol: M
        IsWalkable: false
        BlocksSight: true

Board:
    GenerationType: Manual
    Layout: |-
        M  M  M  M  M  M  M  M  M  M  M  M  M  M  M  M  M  M  M  M  M  M  M
        M  s1 .  .  M  .  .  .  .  .  M  .  M  .  .  .  .  .  M  .  .  .  M
        M  .  M  .  M  .  M  M  M  .  M  .  M  .  M  M  M  .  M  .  M  .  M
        M  .  M  .  .  .  M  .  M  .  .  .  .  .  M  .  M  .  .  .  M  .  M
        M  .  M  .  M  .  M  .  M  .  M  .  M  .  M  .  M  .  M  .  M  .  M
        M  .  M  M  M  M  M  .  M  .  M  .  M  .  M  .  M  M  M  M  M  .  M
        M  .  M  .  .  .  .  .  M  .  M  .  M  .  M  .  .  .  .  .  M  .  M
        M  .  M  .  M  .  M  .  M  k  M  .  M  k  M  .  M  .  M  .  M  .  M
        M  .  M  .  M  .  M  .  M  M  M  .  M  M  M  .  M  .  M  .  M  .  M
        M  .  .  .  M  d1 M  .  .  .  .  .  .  .  .  .  M  d0 M  .  .  s0 M
        M  M  M  M  M  M  M  M  M  M  M  M  M  M  M  M  M  M  M  M  M  M  M
Actions:
    Move:
        Type: EntityAction
        Preconditions:
            - "ResourceGreaterEqual(Source.MovementPoints, 1)"
        Targets:
            Target:
                Type: Position
                SamplingMethod:
                    Type: Dijkstra
                    Options:
                        SearchSize: 3
                        AllowDiagonals: false
                Conditions:
                    - "IsWalkable(Target)"
                    - "IsNotOccupiedGrid(Target, Source)"
        Effects:
            - "Move(Source, Target)"
            - "ModifyResource(Source.MovementPoints, -1)"

    PickUp:
        Type: EntityAction
        Preconditions:
            - "HasNotInventoryFull(Source)"
        Cooldown: 1
        Targets:
            Target:
                Type: Entity
                ValidTargets: Object
                SamplingMethod:
                    Type: Neighbours
                    Options:
                        Shape: AllPositions
                Conditions:
                    - "InRange(Source, Target, Source.ActionRange)"
        Effects:
            - "PickUp(Source, Target)"

    EquipObject:
        Type: EntityAction
        Cooldown: 1
        Targets:
            Target:
                Type: Object
                Conditions:
                    - "CanEquipObject(Source, Target)"
        Effects:
            - "EquipObject(Source, Target)"

    UnEquipObject:
        Type: EntityAction
        Cooldown: 1
        Targets:
            Target:
                Type: SlotObject
        Effects:
            - "UnEquipObject(Source, Target)"

    #UseObject:
    #    Type: EntityAction
    #    Cooldown: 1
    #    Targets:
    #        Target:
    #            Type: Object
    #    Effects:
    #        - "UseObject(Source, Target)"

    #DropObject:
    #    Type: EntityAction
    #    Cooldown: 1
    #    Targets:
    #        Object:
    #            Type: Object
    #        Position:
    #            Type: Position
    #            SamplingMethod:
    #                Type: Dijkstra
    #                Options:
    #                    SearchSize: 3
    #                    AllowDiagonals: false
    #    Effects:
    #        - "DropObject(Source, Object, Position)"

    UseSlotObject:
        Type: EntityAction
        Cooldown: 1
        Targets:
            Object:
                Type: SlotObject
            TargetDoor:
                Type: Entity
                ValidTargets: Door
                SamplingMethod:
                    Type: Neighbours
                    Options:
                        Shape: AllPositions
                Conditions:
                    - "InRange(Source, TargetDoor, Source.ActionRange)"
        Effects:
            - "UseSlotObject(Source, Object)"


Entities:
    Searcher:
        Sprite: ../../../assets/Entities/unit_2.png
        Symbol: s
        LineOfSightRange: 2
        Actions: [Move, PickUp, EquipObject, UnEquipObject, UseSlotObject]
        InventorySize: 4
        Slots: [Left hand, Right hand]
        Parameters:
            Health: 200
            ActionRange: 2
            MovementPoints: 2

    Door:
        Sprite: ../../../assets/Entities/wonder.png
        Symbol: d
        LineOfSightRange: 2

Objects:
    Key:
    Sprite: ../../../assets/Entities/key.png
    Symbol: k
    CanEquip: [Searcher] #Who can equip the object in the slots
    SlotsUse: [Right hand] #empty == cant be equiped in any slot

    #Source object , Target entity
    #OnEquip:
        #Conditions: #conditions executed when the object is added to a slot
        #Effects: #effects executed when the object is added to a slot
    #OnAddedInventory:
        #Conditions: #conditions executed when the object is added to the inventory
        #Effects: #effects executed when the object is added to the inventory
    OnUseSlot:
        #Conditions: #conditions executed when the object is used in the slot
        Effects: #effects executed when the object is used in the slot
            - "ModifyResource(Target.Player.DoorsOpened, 1)"
    #OnUseInventory:
        #Conditions: #effects executed when the object is used in the inventory
        #Effects: #effects executed when the object is used in the inventory
        #    - "ModifyResource(Target.Health, Source.HealAmount)"

    #OnTickActions: [] #Execute when in on slot or inventory
    #Parameters:
    #    HealAmount: 20
    #    HealRange: 2

EntityGroups:
    Object: [Key]
    Entities: [Searcher, Door]

ForwardModel:
    WinConditions: #If true: Player -> win game
        Flags:
        - "ResourceGreaterEqual(Source.DoorsOpened, 1)"

    Trigger:
        - OnTick:
            Type: Entity
            ValidTargets: Searcher
            Effects:
                - "SetToMaximum(Source.MovementPoints)"

#Action categories
GameDescription:
    Type: CombatGame
    Actions:
        Move: [Move]
    Entities:
        Unit: [Searcher]

GameRunner:
    AgentInitializationTime:
        Enabled: false
        BudgetTimeMs: 50
        DisqualificationTimeMs: 70
    AgentComputationTime:
        Enabled: false
        BudgetTimeMs: 1000
        DisqualificationTimeMs: 70
        MaxNumberWarnings: 5
